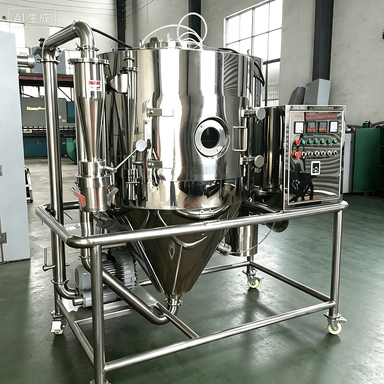

Small Centrifugal Spray Dryer

Small Centrifugal Spray Dryer

Product Introduction

The Small Centrifugal Spray Dryer is designed for laboratory testing, pilot production, small-batch production, and industrial powder processing. It can rapidly convert liquid materials such as solutions, emulsions, suspensions, and slurries into dry powder.

The liquid feed is atomized into fine droplets by a high-speed centrifugal atomizer. The fine droplets come into direct contact with heated air inside the drying chamber, allowing moisture to evaporate rapidly and producing uniform, free-flowing powder.

The equipment features fast drying speed, compact structure, easy operation, and flexible configuration. Different models and capacities are available, and the spray drying system can also be customized according to the customer's material characteristics and production requirements.

Main Features

• High-speed centrifugal atomization

• Fast drying and short drying time

• Uniform powder production

• Continuous drying process

• Compact and integrated design

• Easy operation and maintenance

• Adjustable inlet and outlet temperature

• Stainless steel construction available

• Multiple models and capacities available

• Customized configuration available

Working Principle

The liquid material is continuously delivered to the high-speed centrifugal atomizer through the feeding system.

The atomizer rotates at high speed and disperses the liquid into fine droplets inside the drying chamber. At the same time, filtered air is heated and introduced into the drying chamber.

The atomized droplets come into direct contact with hot air, causing rapid evaporation of moisture. The liquid feed is converted into dry powder within a short period of time.

The dried powder is collected from the bottom of the drying chamber and through the powder collection system.

Applications

The Small Centrifugal Spray Dryer is suitable for a wide range of liquid and slurry materials.

Food Industry

• Food additives

• Flavorings

• Beverage powders

• Plant extracts

• Protein materials

Pharmaceutical Industry

• Pharmaceutical liquids

• Herbal extracts

• Pharmaceutical intermediates

Chemical Industry

• Chemical solutions

• Suspensions

• Pigments

• Dyes

• Catalysts

• Fine chemicals

Ceramic & Advanced Materials

• Ceramic slurry

• Alumina

• Zirconia

• Functional powders

• Advanced materials

Technical Parameters

Note: Technical parameters may vary depending on material characteristics, feed concentration, evaporation requirements, and actual equipment configuration.

Customized models are available for special materials and larger processing capacities.

* The unit of evaporation capacity should be confirmed according to the final technical specification before publication.

Model Selection

Different materials require different spray drying conditions.

For accurate equipment selection, please provide the following information:

• Material name

• Feed concentration

• Initial moisture content

• Final moisture requirement

• Required processing capacity

• Feed temperature

• Heat sensitivity

• Required particle size

• Heating source

• Special process requirements

Customized Spray Drying Solutions

We provide customized centrifugal spray drying solutions according to different materials and production requirements.

The equipment capacity, drying chamber, atomization system, heating system, powder collection system, control system, and equipment material can be customized according to the actual production process.

Whether you need a small spray dryer for laboratory testing or a larger industrial spray drying system, we can recommend a suitable configuration according to your application.

Why Choose Our Spray Dryer?

• Multiple models available

• Customized processing capacity

• Stainless steel options

• Flexible heating methods

• Automatic control available

• Customized powder collection system

• Equipment selection support

• Complete spray drying solutions

Contact Us

Looking for a suitable centrifugal spray dryer for your material?

Please send us your material name, feed concentration, and required processing capacity.

We will recommend a suitable LPG centrifugal spray dryer model and provide a customized drying solution according to your production requirements.

Contact us for technical consultation, equipment selection, and quotation.
